Model zszywacza TA551A/16-11 służy do wbijania średnich zszywek w rozmiarze 25-51 mm (1″-2″), z koroną mierzącą 11,1 mm (7/16″).
Zszywacz MAX TA551A/16-11
2 048,00 zł
Brutto
Model zszywacza TA551A/16-11 służy do wbijania średnich zszywek w rozmiarze 25-51 mm (1″-2″), z koroną mierzącą 11,1 mm (7/16″).

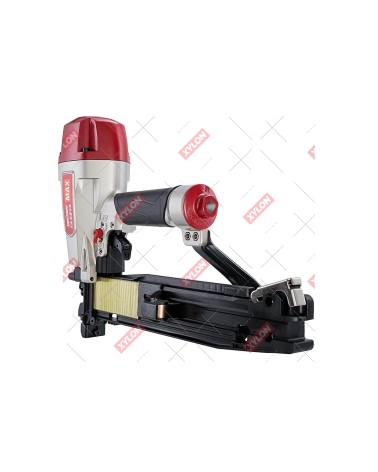

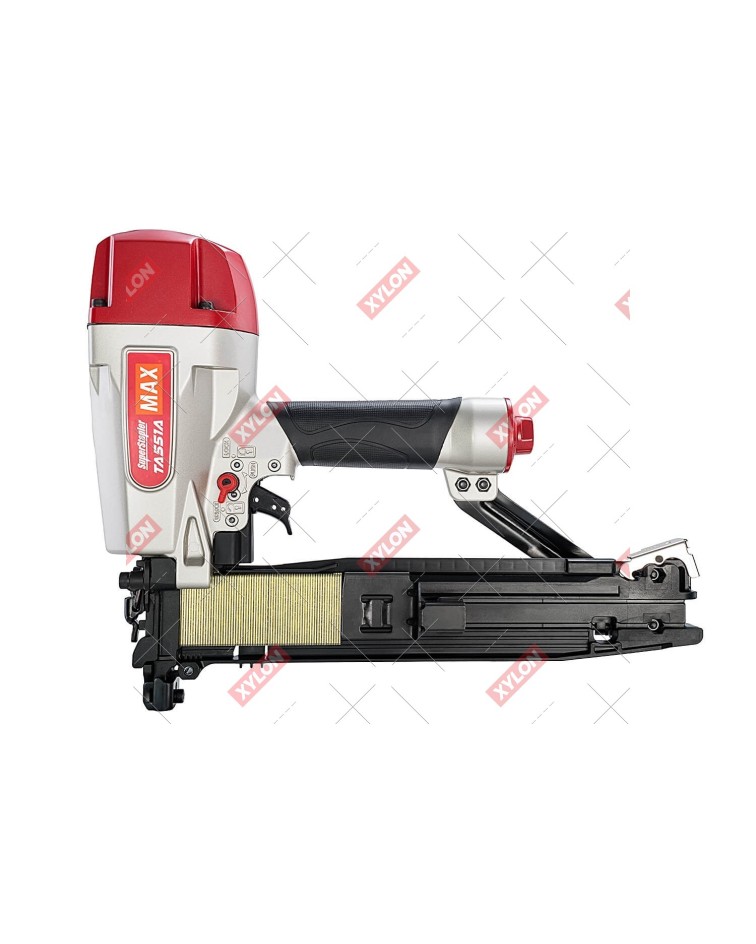

Zszywacz konstrukcyjny MAX TA551A/16-11
Cechy:
- szybki zawór spustowy

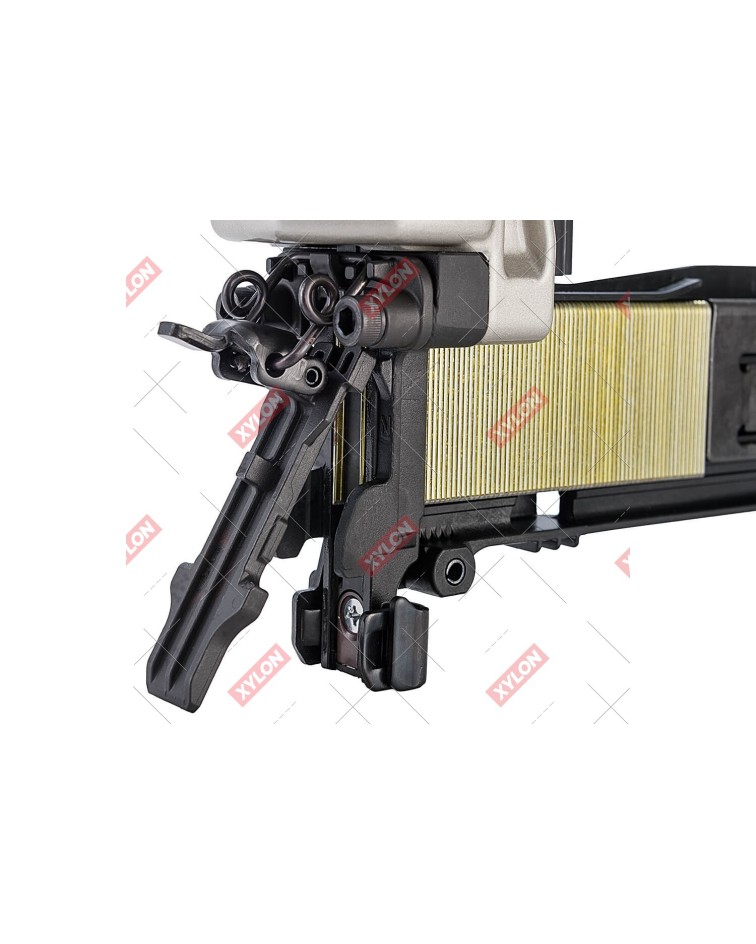

- łatwe usuwanie zablokowanych zszywek
- konfiguracja głębokości
- bezobsługowy filtr tylnej nasadki
Zastosowanie:
- stelaże tapicerskie
- stelaże drewniane
- budownictwo
Specyfikacja:
| Model | TA551A/16-11 |
| Waga | 2,3 kg |
| Wymiary | 275 (wys.) x 82 (szer.) x 356 (dł.) mm |
| Pojemność | 157 zszywek |
| Ciśnienie robocze | 5-7 barów |
| ID | Kod części | Nazwa części | Cena | Akcja |
|---|---|---|---|---|
| 1 | BB40470 | SCREW M5x32 | 1,70 zł | |
| 2 | TA18832 | Cylinder Cap (WAS TA16996) | 267,83 zł | |
| 3 | CN35720 | Label B(CE) | 4,03 zł | |
| 4 | FF31535 | PARALLEL PIN 1535 | 11,28 zł | |
| 5 | TA16997 | Cylinder Cap Seal | 30,53 zł | |
| 6 | CN33838 | Exhaust Seal | 19,70 zł | |
| 7 | HH11170 | O-Ring 1AP48 | 3,13 zł | |
| 8 | CN37216 | Head Valve Guide | 8,95 zł | |
| 9 | CN38020 | Compression Spring 3934 | 23,28 zł | |
| 10 | HH11138 | O-RING AP20 | 2,06 zł | |
| 10 | HH11138 | O-Ring 1AP20 | 2,06 zł | |
| 11 | CN37217 | Head Valve Piston | 14,33 zł | |
| 12 | HH12108 | O-Ring 1AG65 | 8,06 zł | |
| 13 | CN35060 | Cylinder Ring | 11,01 zł | |
| 14 | CN37824 | Cylinder Seal (WAS CN34682) | 15,31 zł | |
| 15 | HH19165 | O-Ring 1A2.6x46.5 | 4,39 zł | |
| 16 | CN35131 | Check Valve | 13,70 zł | |
| 17 | TA18836 | Cylinder (WAS TA16998) | 236,49 zł | |
| 18 | HH11807 | O-Ring P38 (repl HH19908) | 31,70 zł | |
| 19 | TA70278 | Main Piston Unit | 507,98 zł | |
| 20 | TA17016 | Bumper | 38,95 zł | |
| 21 | TA17017 | Nozzle | 9,31 zł | |
| 22 | TA18831 | Frame | 775,09 zł | |
| 23 | TA81112 | Frame Unit | 593,59 zł | |
| 24 | TA18834 | Label A | 8,95 zł | |
| 25 | TA18835 | Label B | 8,95 zł | |
| 26 | TA18688 | Nose | 572,28 zł | |
| 27 | TA18523 | Wear Chip (WAS TA17015) | 115,33 zł | |
| 28 | AA22207 | Countersunk Screw 4 X 5 | 0,90 zł | |
| 29 | TA18509 | Driver Guide B | 185,62 zł | |
| 30 | TA70447 | Latch Unit | 127,06 zł | |
| 31 | FF21275 | ROLL PIN 4X16 | 0,90 zł | |
| 32 | TA18508 | Driver Guide A | 142,46 zł | |
| 33 | BB40457 | BOLT 6X38 | 2,24 zł | |
| 34 | FF21611 | Roll Pin 3 x 32 AW | 1,70 zł | |

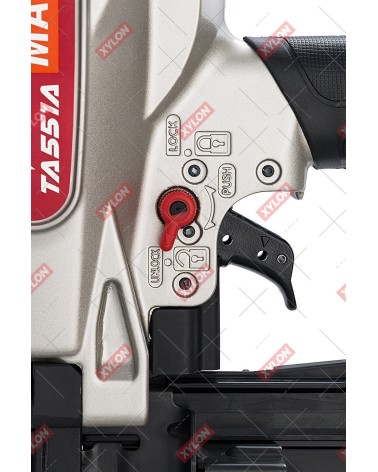

| 35 | KN12621 | Tigg.Lock Dial/repCN35058 | 3,60 zł | |
| 36 | KK23507 | Compression Spring 3507 | 1,70 zł | |
| 37 | TA17007 | Contact Arm A | 66,26 zł | |
| 38 | TA17008 | Contact Arm B | 15,31 zł | |
| 39 | BB40467 | Bolt 5x6 | 1,70 zł | |
| 40 | TA17001 | Contact Arm Guide | 11,73 zł | |
| 41 | KK23807 | Comp. Spring 3807 | 4,30 zł | |
| 42 | KK23282 | Compression Spring 3282 | 2,51 zł | |
| 43 | CC49409 | Nut | 1,70 zł | |
| 44 | CN35075 | Trigger Lock Lever (repl. CN35057) | 4,12 zł | |
| 45 | TA17032 | End cap | 80,59 zł | |
| 46 | HH12118 | O-Ring 1AG35 | 4,12 zł | |
| 47 | TA17024 | Filter A | 38,95 zł | |
| 48 | HH11125 | O-Ring 1AP12 | 1,70 zł | |
| 49 | CN31323 | Trigger Valve Hausing | 17,01 zł | |
| 50 | HH11119 | O-Ring 1AP6 | 1,54 zł | |
| 50 | HH11119 | O-RING AP6 N10027 | 1,54 zł | |
| 51 | HH11209 | O-Ring 1BP7 | 2,08 zł | |
| 51 | HH11209 | O-Ring 1BP7 | 2,08 zł | |
| 52 | FF30161 | Straight Pin 161 | 2,24 zł | |
| 52 | FF30161 | Straight Pin 161 | 2,24 zł | |
| 53 | CN31589 | Pilot Valve | 17,01 zł | |
| 54 | HH11113 | O-Ring 1AP9 | 1,54 zł | |
| 54 | HH11113 | O-Ring 1AP9 | 1,54 zł | |
| 55 | KK24123 | COMPRESSION SPRING 4123 | 5,01 zł | |
| 56 | CN35779 | Trigger Valve Stem | 21,31 zł | |
| 57 | HH11901 | O-Ring 1B1.4x2.5 | 1,70 zł | |
| 57 | HH11901 | O-Ring 1B1.4x2.5 | 1,70 zł | |
| 58 | CN33009 | Trigger Valve Cap | 10,66 zł | |
| 59 | CN35115 | Contact Lever | 9,31 zł | |
| 60 | CN35714 | Trigger | 6,98 zł | |
| 61 | FF22402 | Spring Pin 3x16 | 0,90 zł | |
| 62 | TA18511 | Pusher | 135,66 zł | |
| 63 | TA18512 | CLICK LEVER | 22,03 zł | |
| 64 | KK44023 | Pusher Spring | 38,95 zł | |
| 65 | FF21613 | Roll Pin 6x20 | 2,24 zł | |
| 66 | TA18510 | Magazine | 55,43 zł | |
| 67 | TA17010 | Magazine Cover | 24,98 zł | |
| 68 | TA18841 | Warning Label (CE) | 11,28 zł | |
| 70 | TT15401 | Hex. Bar Wrench 4 | 2,78 zł | |
| 71 | BB40408 | BOLT 5X14 | 1,70 zł | |
| 72 | TA17013 | Tail Hanger | 49,25 zł | |
| 73 | BB40401 | BOLT 5 X 22 | 1,70 zł | |
| 74 | CN35714 | Trigger | 6,98 zł | |
| 75 | TA70471 | STAPLE COVER ASSY | 206,49 zł | |
| 76 | KK33247 | Torsion Spring 3247 (repl. KK33145) (seq. Trip) | 11,01 zł | |
| 77 | TA16138 | S.T. Lever (repl CN33730) (seq. Trip) | 55,07 zł | |
| 78 | KK33144 | Torsion Spring 3144 (seq. Trip) | 11,01 zł | |
| 79 | CN32246 | Pilot Valve | 16,83 zł | |
| 80 | CN33723 | Trigger Valve Stem (seq.Trip) | 9,31 zł | |
| 81 | CN31346 | Trigger Valve Cap (seq. Trip) | 8,06 zł | |
| 82 | TA17023 | Contact Arm A (seq. Trip) | 155,90 zł | |
| 83 | FF41599 | PIN 1599 (REPLACES FF41587) | 9,31 zł | |
| 84 | GN10424 | SPRING COLLAR | 3,40 zł | |
| 85 | KK23287 | COM.SPRING 3287 | 2,51 zł | |
| 86 | KK29015 | COMP. SPRING 9015 | 5,01 zł | |
| 200 | TA81012 | O-Ring Kit | 88,20 zł | |
| 201 | CN80150 | Trigger Valve Kit | 71,10 zł | |
| 202 | TA81011 | Seq. Trip Kit | 356,21 zł | |
| 203 | TA81014 | STEP PIN KIT | 38,95 zł | |
| 204 | FF41842 | Step Pin 1842 | 36,35 zł | |
| 205 | EE39609 | RUBBER WASHER 1.8X6X2 | 1,70 zł | |
| 206 | CN80150 | Trigger Valve Kit | 71,10 zł |
